Description

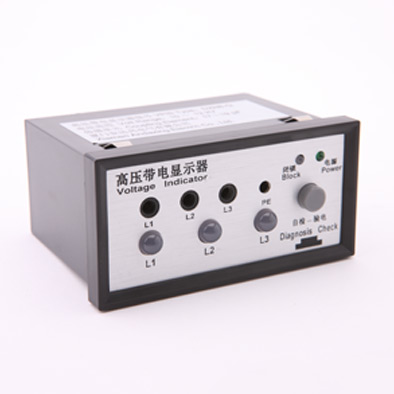

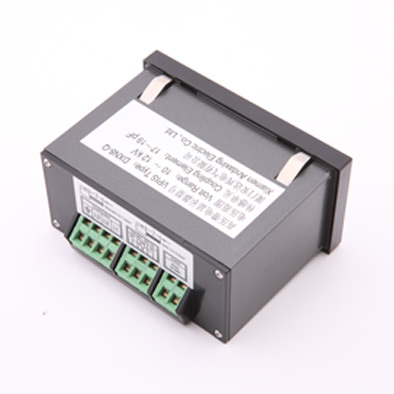

VPIS for M.V. cubicles (switchgear)

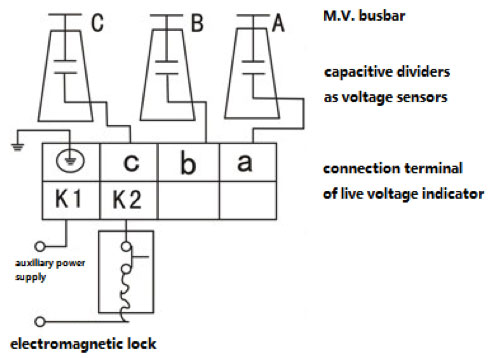

DXN series of voltage presence indicating system (VPIS) indicates the voltage presence on M.V. cubicles by being installed on the capacitive dividers.
The live voltage indicator (POTENTIAL INDICATOR) can also output interlocking signal to the electromagnetic lock to automatically lock up the switch handle for preventing mis-operation or locking out people from entering into the charged areas.
Product Features
- 3-phase live-voltage indicating system
- Interlocking indication by relay signal output for auto lockout with electromagnetic lock
- Can work with phase comparator for phase checking
- With self-checking button and LED power supply indicator
- Wide-range 3kV- 40.5kV
- Working frequency 50/60Hz
- Threshold values for voltage presence indication: U>0.40 x Un
- Threshold values for voltage absence indication: U<0.15 x Un
- Threshold values for over-voltage protection: <0.30 x Un
- Divider capacitance 14pF or be specified by buyer
- Temperature range -25°C to +40°C
- Insulation strength: AC 2kV, 1min
- Product dimensions (L×W×D) 96x49x77mm
Technical Parameters:
| Executive Standard | DL/T538-2006 | |
| Working Frequency | 50Hz/60Hz | |
| Nominal Voltage | 3-3.6kV | |
| 6-7.2kV | ||
| 10-12kV | ||
| 20-24kV | ||
| 35-40.5kV | ||
| Divider Capacitance | 14pF,or customized by buyers | |
| Threshold Values for Voltage Presence Indication | U>0.40 x Unmin | |
| Threshold Values for Voltage Absence indication | U<0.15 x Unmin | |
| Threshold Values for Over-voltage Protection | U<0.30 x Unmin | |
| Contact Capacity of Relay | Maximum Switching Voltage | 250V |
| Persistent Current | 16A | |
| Auxiliary Power Supply | AC/DC 24-230V | |
| Working Temperature | -25℃-+40℃ | |
| Working Humidity | ＜95% | |
| Insulation Strength | 2kV,1min | |

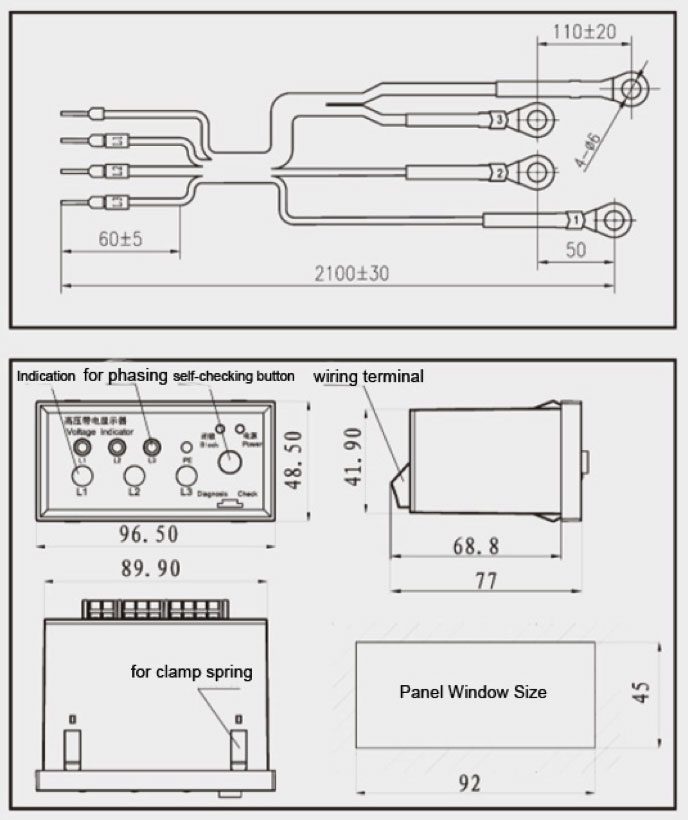

| Overall Dimension (WxHxD) | 96x49x77 mm | |
| Mounting Dimension (WxHxD) | 92x45x69 mm | |
| Shielded Cable Length | 2M,or customized by buyers | |

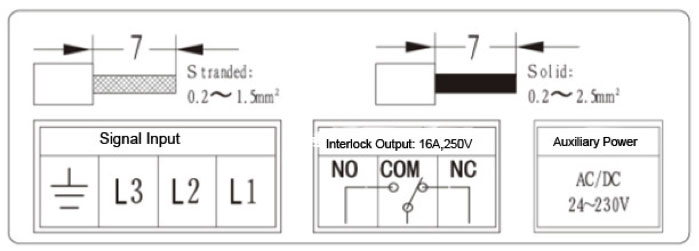

Terminal Definitions:
| Marks | Definitions | ||
| Earth Terminal | |||
| Signal Input | L3 | HV Phase L3, the input terminal for coupling signals | |
| L2 | HV Phase L2, the input terminal for coupling signals | ||
| L1 | HV Phase L1, the input terminal for coupling signals | ||
| Interlocking Signals Output | NC | Normally- closed contact for interlocking signals output. | When the phase is live voltage present: the block lamp will light up NO and COM will be disconnected; NC and COM will be connected. When the phase is live voltage absent: |
| COM | Common contact for interlocking signals output. | ||
| NO | Normally- open contact for interlocking signals output. | ||
| Power | AC/DC 24-230V | The input terminal for auxiliary power supply
DC/AC without polarity |
|
