Description
In general

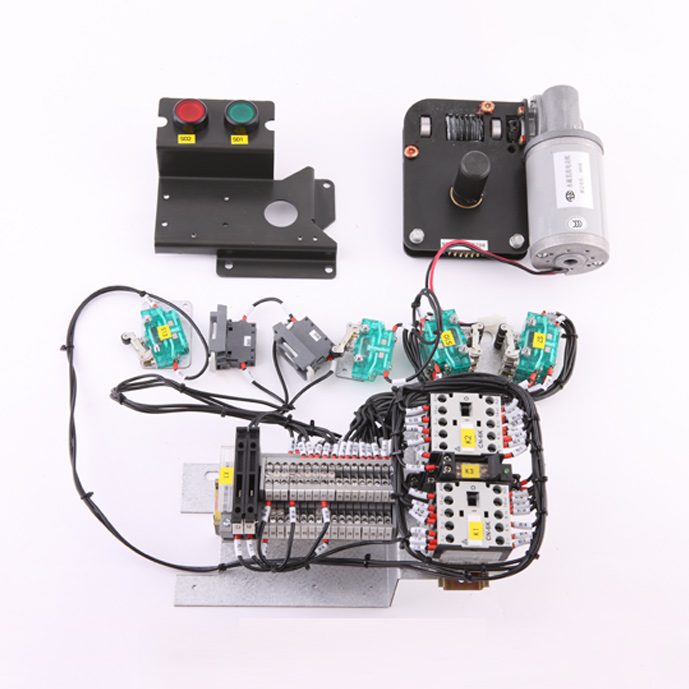

ADDC series of motorized operating mechanisms can be used in various M.V. switchgears and ring main units. It can store energy for make-and-break of circuit breakers with motorized functionality. The system consists of motor, gear driving device, control unit and wire plug-in unit.
- Remote/local switching and local make-and-break of switches
- local and remote indication of the status of load switches, earth switches and fuses
- Plug-in type of wiring makes it easy for on-site installation
Naming
AD DC 1 – C / AC220
AD—Andaxing products
DC– motorized operating mechanisms
1—design number
C– applicable module
AC220—rated voltage
Technical Data
ADDC1 series are applicable for modules of ABB safe cabinets. The main components are all from international famous brands and the structural parts are all made of superior materials. This series of products have been supplied to ABB for a long time.
Rated Voltage
(VDC) |
Rated Power
(W) |
Rated Current
(A) |
Rate Speed
(r/min) |
Rated Torque
(N.m) |
Working
Temperature(℃) |
Storage time of motor(s) |
220 |
65 |
0.6 |
180 |
3.45 |
-40~+40 |
8±1 |
110 | 1.2 | |||||
48 | 2.8 | |||||
24 | 5.6 |
Applications
ADDC1-C: C、SL Modules
ADDC1-F: F Module
ADDC1-V: V、SV Modules
Application examples
