Motorized operating mechanisms AD DC 1 – V / AC220

Description

Motorized operating mechanisms AD DC 1 – V / AC220

In general

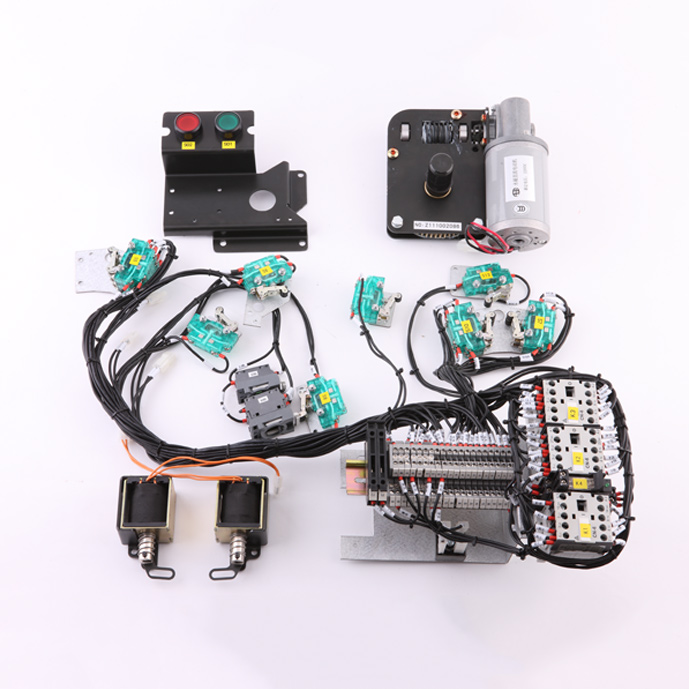

ADDC series of motorized operating mechanisms can be used in various M.V. switchgears and ring main units. It can store  energy for make-and-break of circuit breakers with motorized functionality. The system consists of motor, gear driving device, control unit and wire plug-in unit.

• Remote/local switching and local make-and-break of switches
• local and remote indication of the status of load switches, earth switches and fuses
• Plug-in type of wiring makes it easy for on-site installation



Naming

AD DC 1 – V/ AC220

AD—Andaxing products

DC– motorized operating mechanisms

1—design number

V– applicable module

AC220—rated voltage



Technical Data

ADDC1 series are applicable for modules of ABB safe cabinets. The main components are all from international famous brands and the structural parts are all made of superior materials. This series of products have been supplied to ABB for a long time.





Applications

ADDC1-C： C、SL Modules

ADDC1-F： F Module

ADDC1-V： V、SV Modules



Application examples

ADDC1-V motorized operating mechanism is used in Module V of ABB safe cabinets.
