Motorized operating mechanisms AD DC 2 – A / AC220

Description

Motorized operating mechanisms AD DC 2 – A / AC220

In general

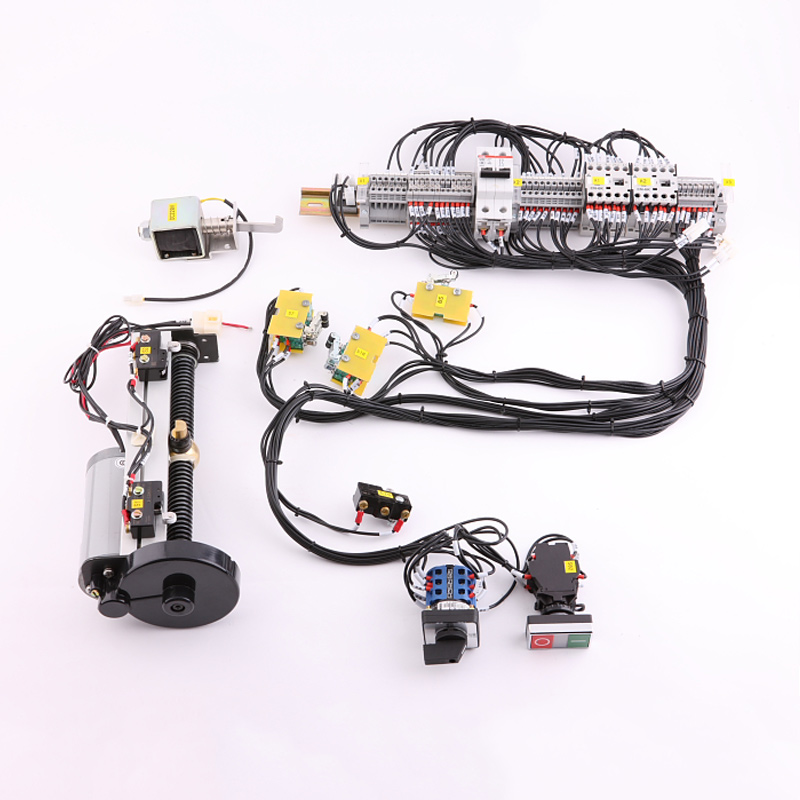

ADDC series of motorized operating mechanisms can be used in various M.V. switchgears and ring main units. It can store  energy for make-and-break of circuit breakers with motorized functionality. The system consists of motor, gear driving device, control unit and wire plug-in unit.

• Remote/local switching and local make-and-break of switches
• local and remote indication of the status of load switches, earth switches and fuses
• Plug-in type of wiring makes it easy for on-site installation



Naming

AD DC 2 – A/ AC220

AD—Andaxing products

DC– motorized operating mechanisms

2—design number

A– applicable module

AC220—rated voltage



Technical Data

ADDC2 series are applicable for modules of ABB safe cabinets. The main components are all from international famous brands and the structural parts are all made of superior materials. This series of products have been supplied to ABB for a long time.



Application area

ADDC2-A： Module SDF

ADDC2-K： Module SDC、SMC、SEC



Application examples

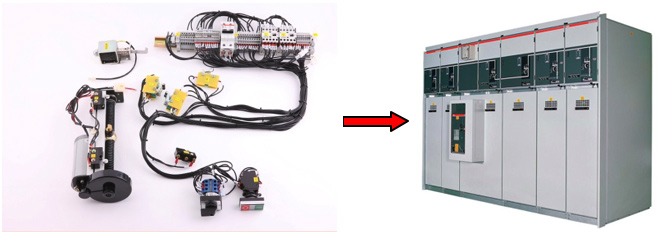

ADDC2-A  motorized operating mechanism is used in Module SDF of ABB Uniswitch cabinets.
