Description
Features:
- With embedded computer and optimized optical system ,convenient and easy to use.
- Operate with both 4.3” touch panel screen and keypads.
- Abundant but simple instructions lead you no manual operation;
- Basic photometric mode,Quantitative analysis,Kinetics test,Wavelength scan,DNA/Protein and multi-wavelengths test are available;
- Alternative fitting and correction methods for Quantitative analysis;
- Optional built in thermal printer output data and curve;
- Up to 1000 test data can be saved in local memory and transfer to USB storage;
Optional ADX’s Windows®-based PC application software provides more features.Kinetics test(Enzyme reaction rate calculation),DNA/Protein test and Wavelength scan are included.
Specifications:

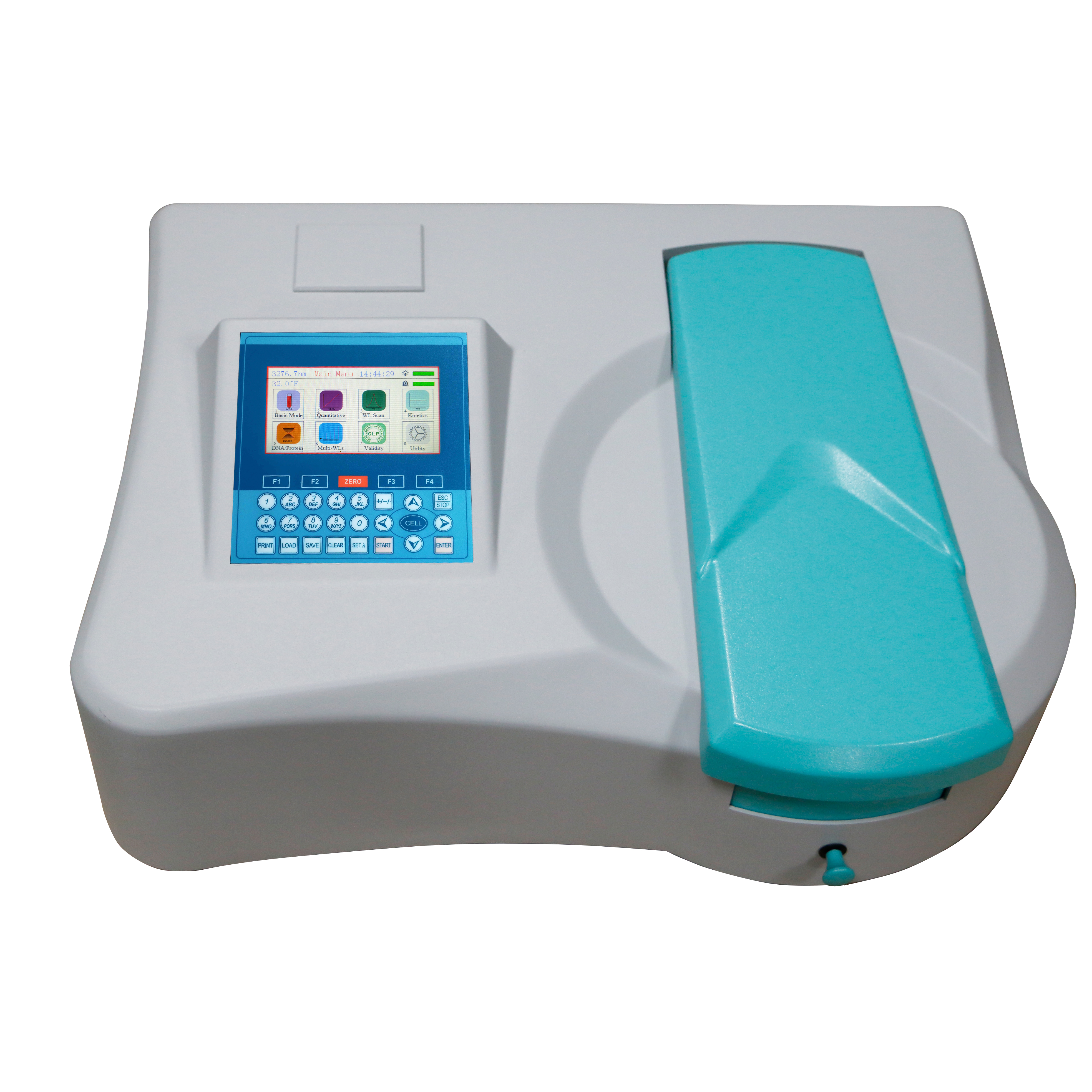

| Models | Alpha-1106 Plus | |
| Wavelength Range | 325 – 1100nm | |
| Spectral Bandwidth | 2nm/4nm（optional） | |
| Optical System | Single beam, Littrow,Grating 1200 line/mm | |
| Wavelength Accuracy | ±1.0nm | |
| Wavelength Repeatability | ±0.5nm | |
| Wavelength Resolution | 0.1nm | |
| Photometric Range | 0.3 to 3A ; 0-200%T; -9999 to 9999C | |
| Photometric Accuracy | ±0.004A@0.5A , ±0.5%T(0～100%T) | |
| Photometric Repeatability | ±0.002A@0.5A , ±0.3%T(0～100%T) | |
| Stray Light | ≤0.05%T@340nm | |
| Baseline flatness | ±0.002A(PC running software required) | |
| Stability | ±0.002A/hr @500nm ,0A | |
| Data Output | 480×272 touch panel LCD | |
| built-in printer & USB storage(optional） | ||
| Slave USB Connecting to computer | ||
| Size | 570×460×230 mm | |
| Weight | 13.5kg | |
